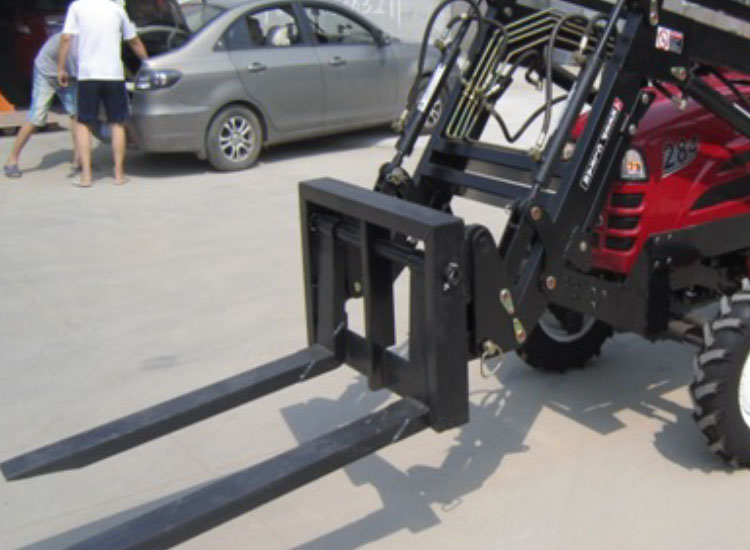

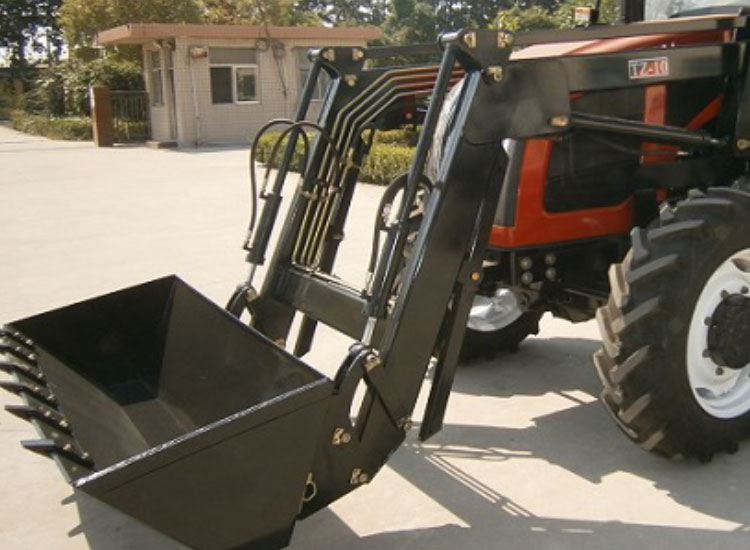

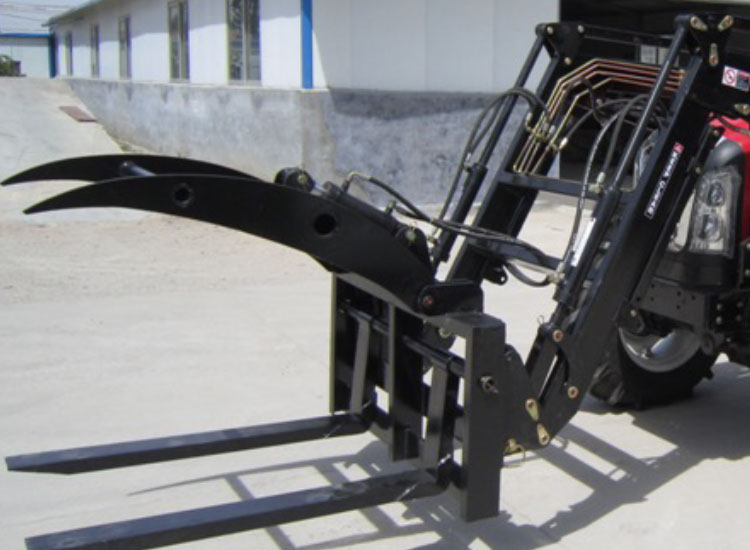

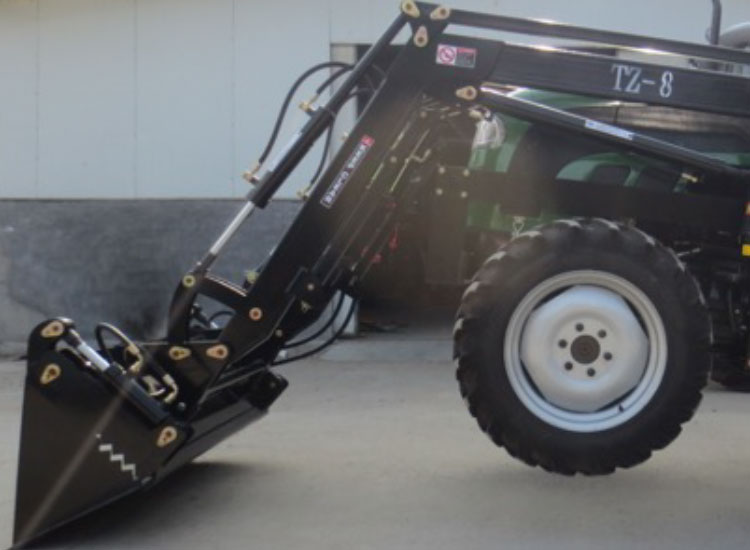

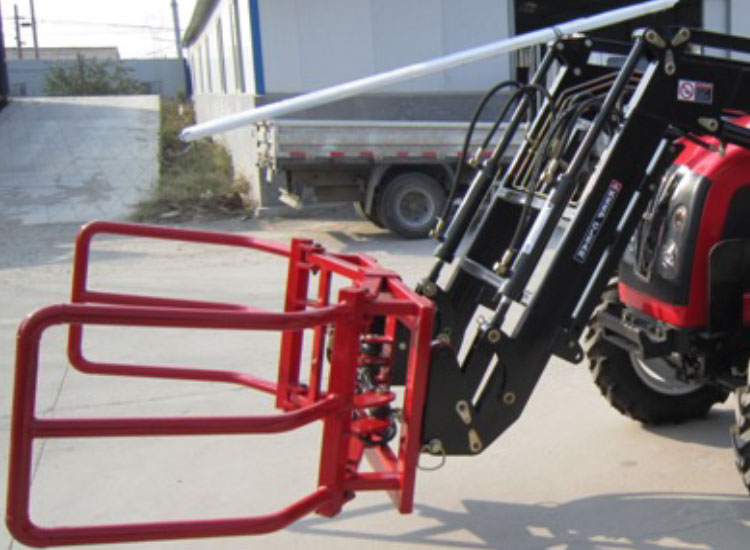

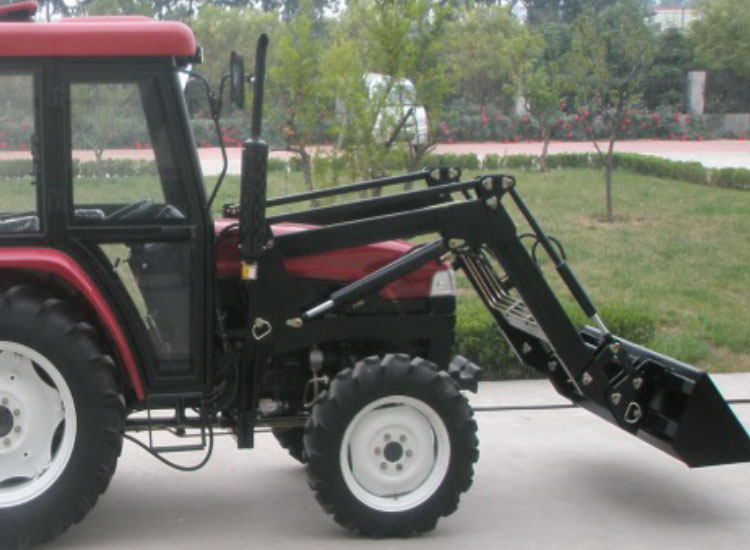

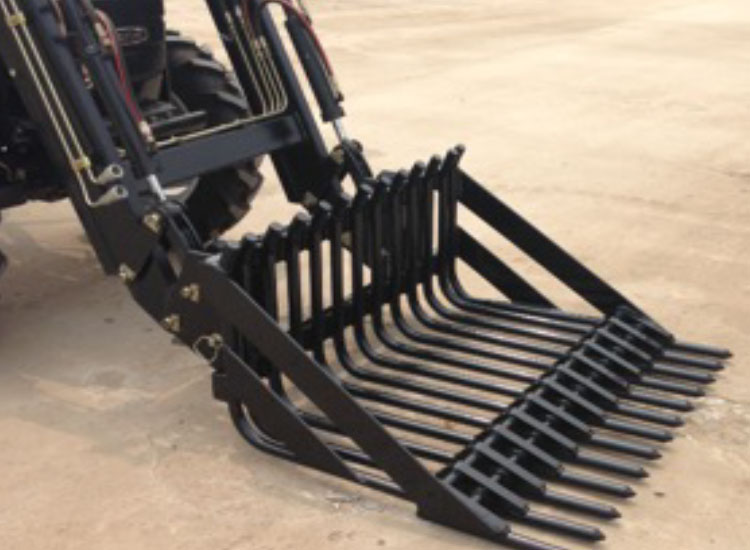

Tractor Front Loader

Model	TZ-3	TZ-4	TZ-8	TZ-10	TZ-12	TZ-16	TZ-18
Matched Power	20-30HP	30-50HP	50-80HP	80 – 100HP	100-140HP	140-160HP	160-180HP
Max. dump height	1800mm	2000mm	2200mm	2400mm	2800mm	4100mm	4500mm
Max. dump distance	900mm	900mm	960mm	1000mm	1100mm	1400mm	1700mm
Bucket rollback angle	42°	42°	42°	42°	42°	42°	42°
Max. unloading angle	47°	47°	46°	46°	46°	46°	46°
Max. scraping depth	100	140	160	160	160	160	160
Lifting time to pivot pin	7s	7s	8s	8s	10s	12	12
Descending time	3.5s	3.5s	4s	4s	10s	12s	12s
Bucket capacity	0.2m3	0.23m3	0.43m3	0.6m3	0.65m3	1.45m3	1.65m3
Overall dimension CM	410×160×158	410×160×158	490×174×249	490×174×249	535×180×300	585×210×360	585×210×360
Pack Dimension CM	210x110x110	210x110x110	220x116x110	220x124x115	220x135x130	320x155x150	320x155x150

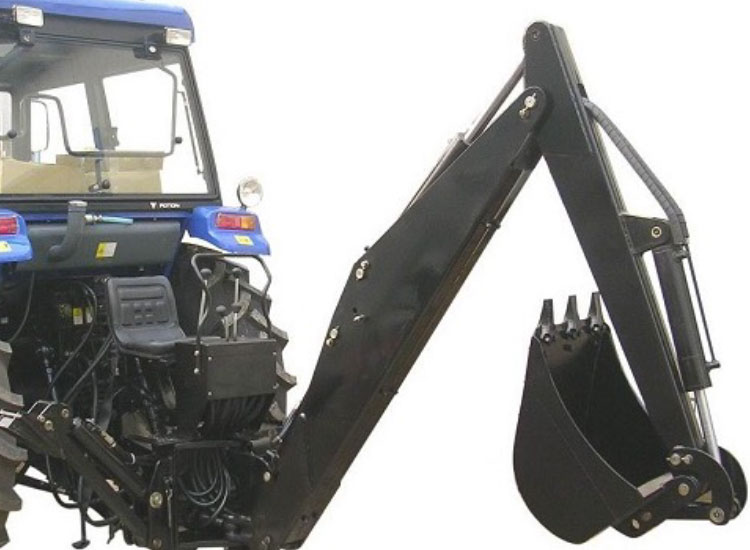

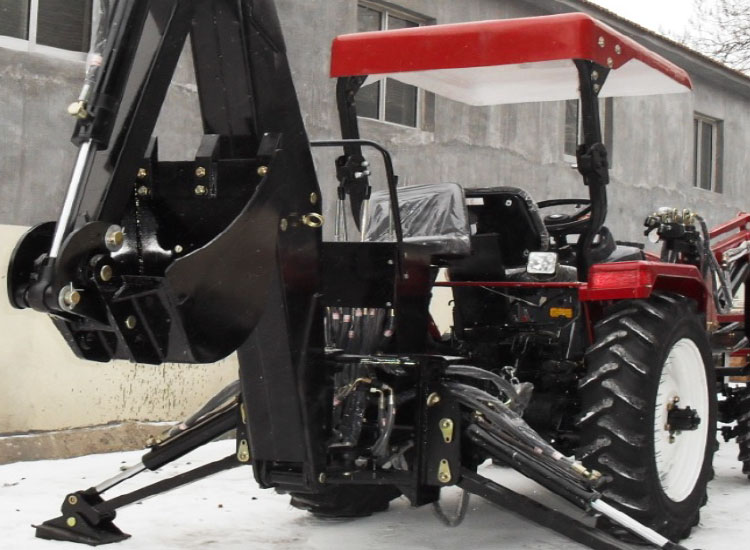

LW Series Tractor Backhoe

Model	LW-6	LW-7	LW-8	LW-9	LW-10	LW-12
Matched Power	16-35HP	25-75HP	45-85HP	50-100HP	70-125HP	90-160HP
Max. Digging Depth	1850 mm	2150 mm	2640 mm	2900 mm	3000 mm	3500 mm
Digging Flat Bottom Depth	1600 mm	2000 mm	2500 mm	2760 mm	2800 mm	3350 mm
Max. Digging Height	2500 mm	3400 mm	3510 mm	3900 mm	4000 mm	4300 mm
Max. Unloading Height	1400 mm	1760 mm	2000 mm	2362 mm	2337 mm	2700 mm
Discharging Height	1733 mm	1878 mm	1952 mm	2413 mm	2540 mm	2770 mm
Digging Radius	2800 mm	3360 mm	3930 mm	3977 mm	3886 mm	4300 mm
Digging Bucket Force	1200 kg	1300 kg	1600 kg	1900 kg	2600 kg	2700 kg
Digging Stick Digging Force	790 kg	950 kg	1000 kg	1270 kg	1720 kg	1900 kg
Bucket Rotation Angle	160°	160°	160°	150°	150°	172°
Swinging Angle	140°	140°	140°	160°	160°	180°
Operating Pressure	16 Mpa	16 Mpa	16 Mpa	16 Mpa	16 Mpa	16 Mpa
Bucket Width	300 mm	400 mm	450 mm	480 mm	500 mm	550 mm
Bucket Capacity	0.03 m3	0.036 m3	0.048 m3	0.054 m3	0.06 m3	0.07 m3

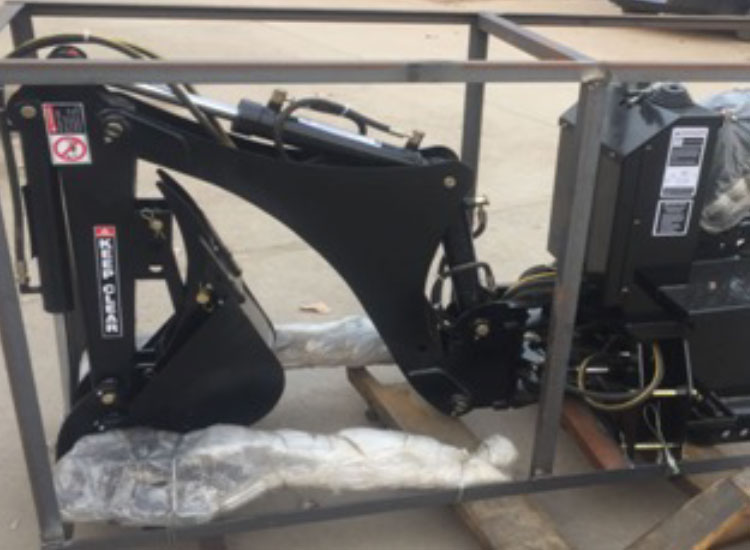

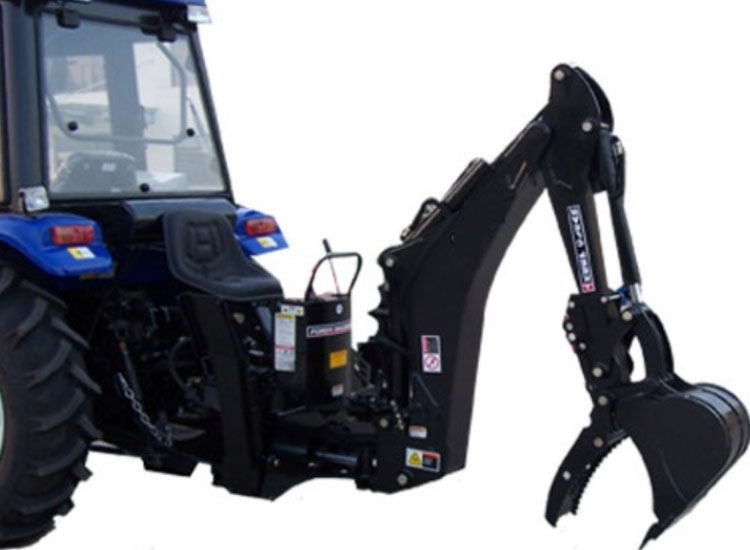

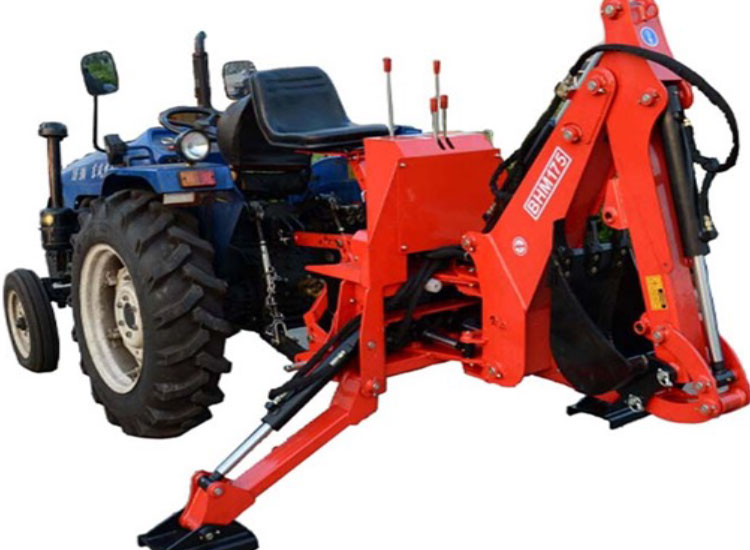

BHM Series Tractor Backhoe

Model		BHM-4	BHM-5	BHM-6	BHM-7	BHM-8	BHM-9
Matched Tractor Power		12-20HP	20-25HP	25-30HP	30-45HP	45-60HP	60-90HP
Linkage Type		3 Points Linkage
Structure Weight		250kgs	290kgs	480kg	500kg	580kg	620kg
A	Digging Depth (Flat Bottom)	950mm	950mm	1750mm	1950mm	2250mm	2550mm
B	Digging Radius			2600mm	2900mm	3200mm	3600mm
C	Loading Height (Bucket at 60°)	1250mm	1250mm	1720mm	1840mm	1930mm	2210mm
D	Max. Transport Height			1840mm	2060mm	2130mm	2480mm
E	Extend Height	2100mm	2100mm	2870mm	3110mm	3240mm	3590mm
F	Loading Reach (Bucket at 60°)			950mm	1180mm	1140mm	1360mm
G	Transport Overhang			1080mm	1110mm	1220mm	1270mm
H	Undercut			730mm	830mm	470mm	520mm
I	Bucket Rotation Angle	180°	180°	180°	180°	180°	180°
L	Swinging Angle			180°	180°	180°	180°
M	Bucket Width	290mm	290mm	300mm	400mm	450mm	500mm
N	Bucket Capacity			0.036	0.045	0.052	0.063
