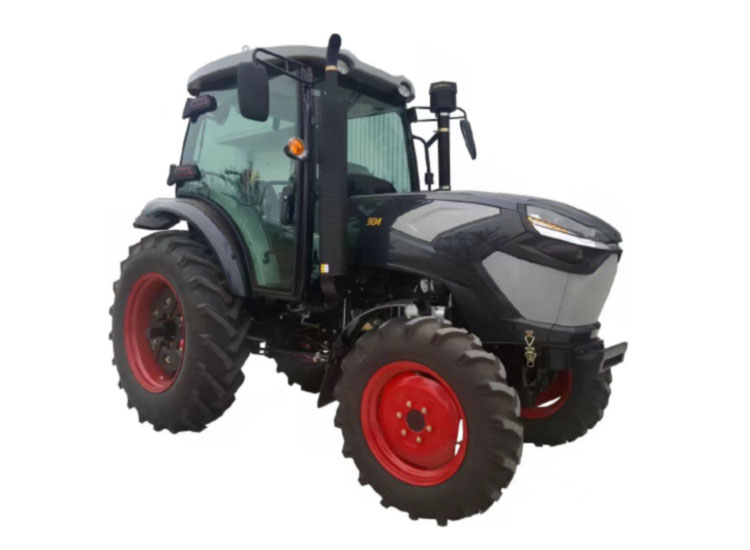

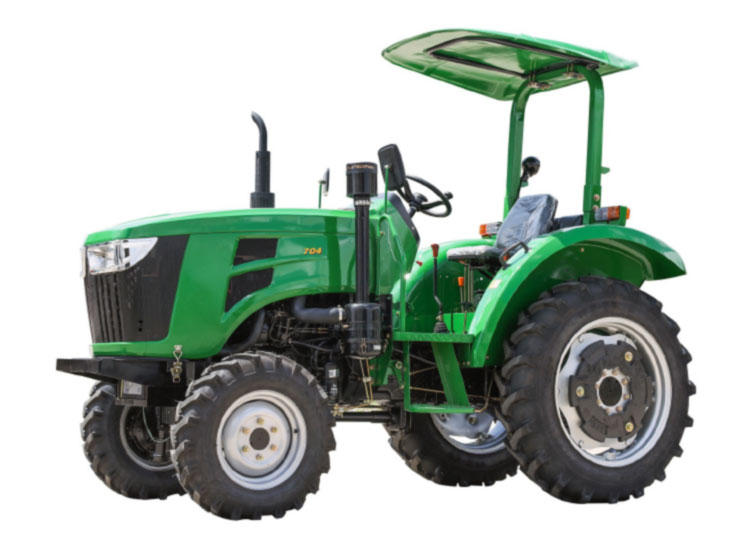

TB Series Tractor 60HP-100HP

TB Series Tractor–60HP, 70HP, 80HP, 90HP, 100HP

Model			TB604	TB704	TB804	TB904	TB1004
Tractor HP			60HP	70HP	80HP	90HP	100HP
Type			4×4 Wheeled Type	4×4 Wheeled Type	4×4 Wheeled Type	4×4 Wheeled Type	4×4 Wheeled Type
Tractor Dimension (mm)	Length		3850	3950	4100	4100	4100
	Width		1750	1750	1850	1850	1850
	Height		2200	2200	2300	2300	2300
	Tread	Front Wheel	1250	1300	1300	1300	1300
		Rear Wheel	1200, 1300 (usual), 1400	1200, 1300 (usual), 1400	1200, 1300 (usual), 1500	1200, 1300 (usual), 1500	1200, 1300 (usual), 1500
	Wheel Base		1980	2100	2100	2100	2100
	Min. Ground Base		325	390	390	390	390
Tractor Weight (kg)			2400	2500	2700	2700	2700
Engine	Model		4 cylinders engine	4 cylinders engine	4 cylinders engine	4 cylinders engine	4 cylinders engine
	Type		Vertical, water cooled and 4-stroke
	Rated Power（kw）		44.1	51.4	58.8	66.2	73.5
	Rated Rev.（r/min）		2400	2400	2400	2400	2400
	Fuel		Diesel	Diesel	Diesel	Diesel	Diesel
Tire	Front Wheel		8.3-20/830-24 or other required options
	Rear Wheel		12.4-28/11.0-32/14.9-30 or other required options
Clutch			dry-friction, two stage clutch
Steering			Hydraulic type	Hydraulic type	Hydraulic type	Hydraulic type	Hydraulic type
Transmission Box			12F+12R shuttle shifts
Suspension Type			Post Positioned Tri-point Suspension Catalogue II
PTO	Type and Rev. (r/min)		Post-position, half-independent, 540/760 or 540/1000(optional)
	Spline Size		I38 Rectangle Spline with 8 teeth
Rops & Sunshine Shed			Rops or Rops with Sunshine shed (Optional)
Cabin			Cabin with fan and heater or Cabin with heater and AC (Optional)
Due to constant technical improvement, products structure and specification are subject to change without prior notice.
