TY Series Tractor 25HP-50H

TY Series Tractor–25HP, 30HP, 35HP, 40HP, 45HP, 50HP

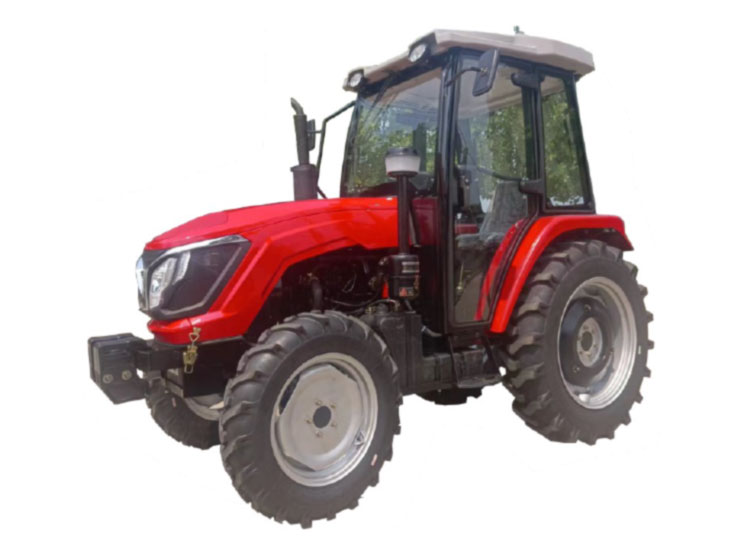

WinnerAgro-TY-Series-Tractor

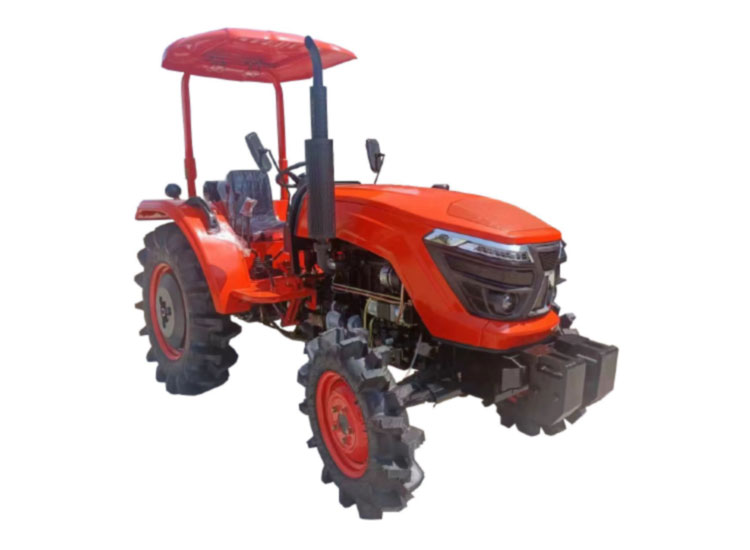

WinnerAgro-TY-Series-Tractor
WinnerAgro-TY-Series-Tractor
 Model TY244/TY254TY304TY354TY404TY454TY504
Tractor HP24HP/25HP30HP35HP40HP45HP50HP
 Type  4×4 Wheeled Type  4×4 Wheeled Type  4×4 Wheeled Type  4×4 Wheeled Type  4×4 Wheeled Type  4×4 Wheeled Type
Tractor Dimension
(mm)		 Length315031503250325032503250
Width150015001500150015001500
 Height203020302050213021302130
TreadFront Wheel1000/1200
Rear Wheel1000/1200/1300
Wheel Base170017001800180018001800
Min. Ground Base360（the bottom of transfer case）
Tractor Weight (kg)135013501450145014501450
Engine Model3 cylinders diesel engine4 cylinders diesel engine
TypeVertical, water cooled and 4-stroke
Rated Power (kw)18.422.125.729.433.136.8
Rated Rev.(r/min)230023002400240024002400
 Fuel Diesel Diesel Diesel Diesel Diesel Diesel
TireFront Wheel6.00-16/650-16 or other required options
Rear Wheel9.50-24/11.2-24 or other required options
Clutchdry-friction, single stage or dry-friction, two stage (Optional)
 Steering Hydraulic type Hydraulic typeHydraulic type Hydraulic typeHydraulic typeHydraulic type
 Transmission Box8F+2R or 8F+8R (optional)
Suspension TypePost Positioned Tri-point Suspension Catalogue Ⅰ
 PTOType and Rev. (r/min)Post-position, half-independent, 540/720
Spline SizeI35 Rectangle Spline with 6 teeth
Rops & Sunshine ShedRops or Rops with Sunshine shed (Optional)
CabinCabin with fan and heater or Cabin with heater and AC (Optional)
Due to constant technical improvement, products structure and specification are subject to change without prior notice.
