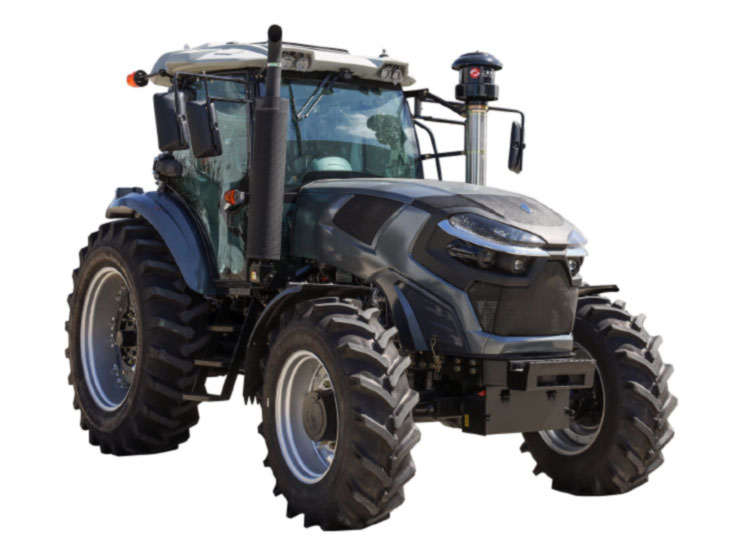

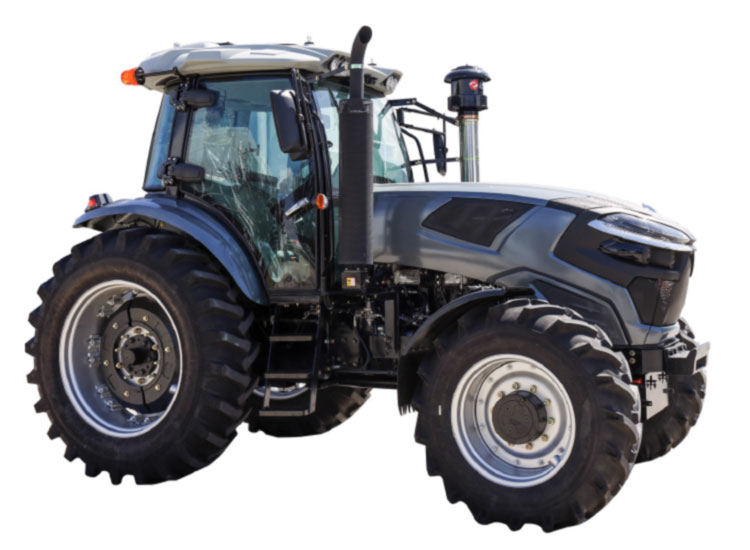

TF Series Tractor 140HP-160H
TF Series Tractor–140HP, 150HP, 160HP, 180HP
| Model | TF1404 | TF1504 | TF1604 | TF1804 | ||
| Tractor HP | 140HP | 150HP | 160HP | 180HP | ||
| Type | 4×4 Wheeled Type | 4×4 Wheeled Type | 4×4 Wheeled Type | |||
| Tractor Dimension (mm) | Length | 5100 | 5100 | 5200 | 5200 | |
| Width | 2300 | 2300 | 2350 | 2350 | ||
| Height | 3100 | 3100 | 3100 | 3100 | ||
| Tread | Front Wheel | 1612，1712，1952，2072，2202 | ||||
| Rear Wheel | 1800(usual)-2000 | |||||
| Wheel Base | 2550 | 2550 | 2650 | 2650 | ||
| Min. Ground Base | 395（the bottom of front axle ) | 450（the bottom of front axle ) | ||||
| Tractor Weight (kg) | 5400 | 5400 | 5500 | 5500 | ||
| Engine | Model | Weichai Deutz or YTO or Cummins diesel engine (Opitonal) | ||||
| Type | 6 cylinders, Vertical, water cooled and 4-stroke | |||||
| Rated Power（kw） | 103 | 110.3 | 118 | 133 | ||
| Rated Rev.（r/min） | 2300 | 2300 | 2300 | 2300 | ||
| Fuel | Diesel | Diesel | Diesel | Diesel | ||
| Tire | Front Wheel | 14.9-26 or other required options | ||||
| Rear Wheel | 18.4-38 or other required options | |||||
| Clutch | Dry-friction, two stage, hydraulic power assisted | |||||
| Steering | Hydraulic type | Hydraulic type | Hydraulic type | Hydraulic type | ||
| Transmission Box | 16F+8R creeping shifts or shuttle shifts (optioanl) | |||||
| Suspension Type | Post Positioned Tri-point Suspension Catalogue Ⅲ | |||||
| PTO | Type and Rev.（r/min） | Post-position, independent type 760/850 or 540/1000 (optioanl) | ||||
| Spline Size | I38 Rectangle Spline with 6 teeth/8 teeth | |||||
| Rops & Sunshine Shed | Rops or Rops with Sunshine shed (Optional) | |||||
| Cabin | Cabin with fan and heater or Cabin with heater and AC (Optional) | |||||
| Due to constant technical improvement, products structure and specification are subject to change without prior notice. | ||||||
